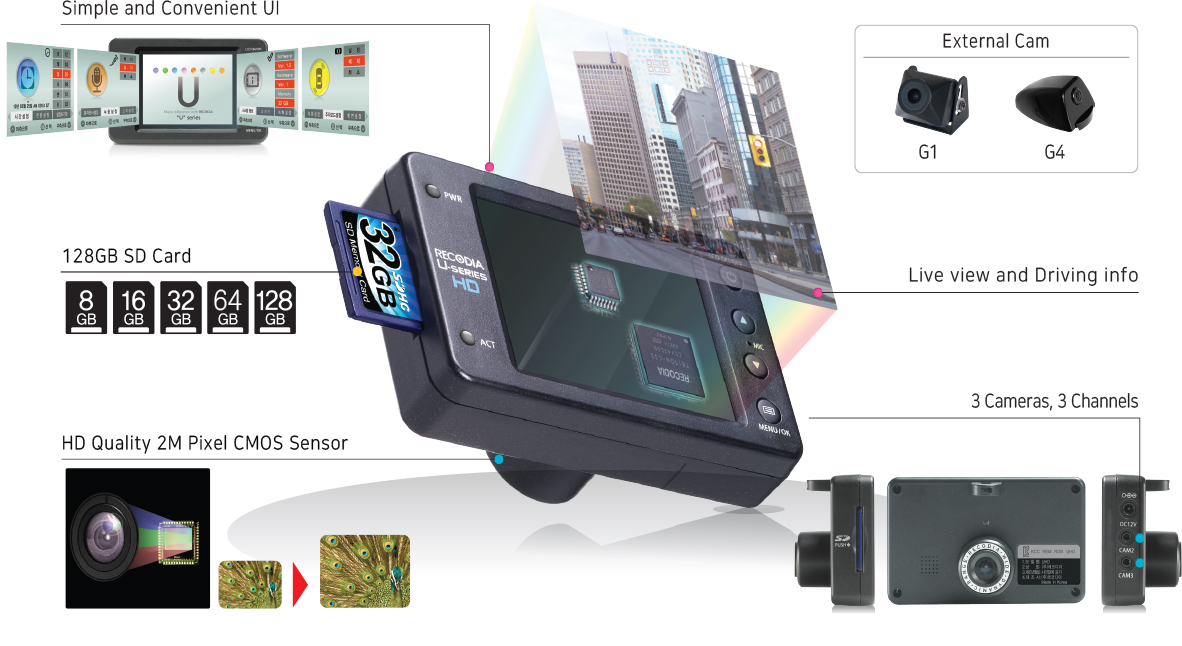

Dash Cam

  • 3 Channels Supported

    The extra channels can be used in conjunction with our
    external cameras for rear view of blind spot monitoring.

  • 2.4"TFT LCD Monitor

    It is offed live view, time, speed, 4-axis accelation view.

  • SD Card 8G~128G

    Supports up to 128G SD memory for long recording time.

  • Motion-Detection Algorithm

    The video is recorded when sensing motion in parking
    mode.

  • GPS Route Mapping

    GPS route mapping through RECODIA player and Google
    maps. Routes and speed are displayed.

  • Embedded Microphone

    The embedded microphone enables recording of sounds
    from within the vehicle.

  • G-Sensor

    Event recording occurs via G-Sensor at the time of the
    accident. Event recording can be replayed on the LCD.

  • RECODIA PC Player

    Dut to unique RECODIA file system, data recovery makes
    system more reliable. The recoded file is only able to be
    replayed by RECODIA's own player.

Product Description

U-Series Video

※ This video is actually taken by RECODIA's products.
※ This video is for web service, and there is some degradation in image quality.
※ With the viewer provided by RECODIA, you can play clearer videos.

RECODIA PC Player

RECODIA Player for PC RECODIA PC Player is a program which enables playback of image stored in the SD card on a PC. Installing Playback Program for PC

The RECODIA PC Player install file is uploaded in the Website of RECODIA(www.recodia.com).
The Player is running after installing if you click the "RECODIA Player".

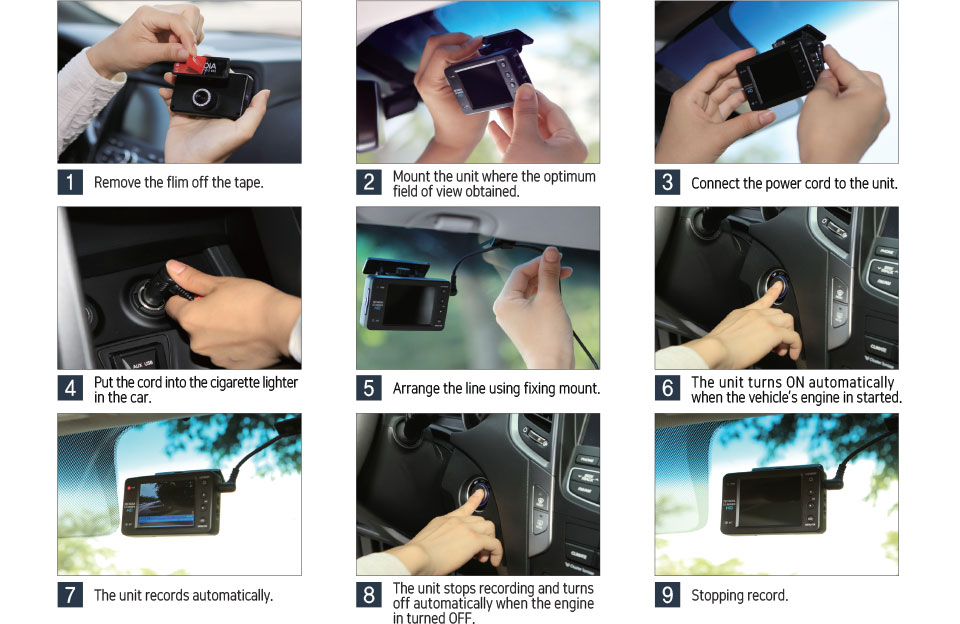

Mounting Sequence

  • 1 Remove the film off the tape.
  • 2 Mount the unit where the optimum
    field of view obtained.
  • 3 Connect the power cord to the unit.
  • 4 Put the cord into the cigarette lighter
    in the car.
  • 5 Arrange the line using fixing mount.
  • 6 The unit turns ON automatically
    when the vehicle's engine in started.
  • 7 The unit records automatically.
  • 8 The unit stops recording and turns
    off automatically when the engine
    in turned OFF.
  • 9 Stopping record.

Specification

U1 HD U2 HD U3 HD
Camera Resolution 1600 X 1200
Sensor Type 2Mega Sensor
Angle 128°
Internal 1 Channel
External No Extra Camera 1 Channel 2 Channels
LCD Display Type 2.4"TFT LCD
Internal Play Support
Controlling Method PC
Information Display Time, Speed, Capacity, G-Sensor
Recording Method Codec MPEG-4
Resolution HD(1024 X 576)
Basic Recording Constant/Event
Optional Recording Event Seperate
Parking Mode Support
G-Sensor 3 Axis (X,Y,Z)
Serial Recording Type LOOP
Storage Media Type & Technology SD card
Basic / Maximum 8G ~ 32G 16G ~ 128G 16G ~ 128G
File System RECODIA Type / PC-Compatible
Recording time
& Frame		 8G 240min / fast 200min / fast 160min / fast
32G 1440min / fast 1200min / fast 720min / fast
Mount Structure Dual hinge
Vertical Angle 170°
Horizontal Angle 60°
Etc Battery Structure Internal Battery
GPS Internal GPS (Option)
MIC Internal MIC
Voltage DC10V ~ 30V
Size 80 x 50 x 69(mm)
Weight 62g (GPS : 75g)

※ The product is subject to change without prior notice for the purpose of improving the performance of the product.

Please be careful when using the Products.
  • As a Memory card is a consumable item of which the lifetime is limited, check recording and playback
    functions to see whether the Memory card is normally operating before use. If the lifetime of the Memory
    card is over, replace it with a product of same specification.
  • Do not use the Memory card of this product also for other products (GPS, digital camera etc.).
    The product may not normally operate.
  • In the case the user want to continue using the product after an accident, use it with another Memory card.
  • Never remove the Memory card during video recording. The Memory card may be damaged and it may
    not be possible to check the stored video. Be sure to disconnect the Memory card after power off.

※ Please refer to the manual for other precautions.
